GARRETT ADVANCING MOTION

Gen2 GTX5533 91mm

Regular price $4,395.00 USD
Regular price Sale price $4,395.00 USD

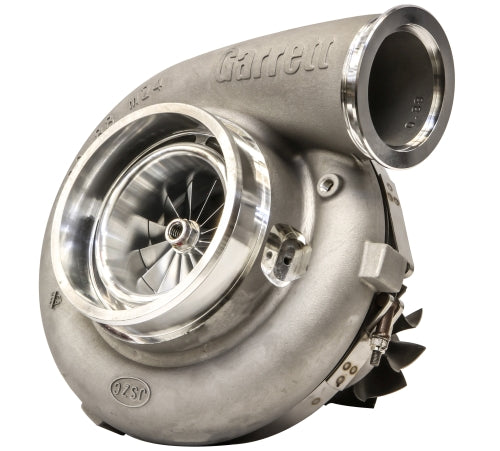

Garrett GEN2 GTX5533R (91mm) dual ball bearing turbocharger (turbine housing sold separately).  Designed for race classes limited to a 91mm compressor wheel inducer.    PRODUCT FEATURES: Advanced aerodynamics & ultra-high flow Garrett GTX GEN2 compressor wheel Forged billet aluminum compressor wheel Machined speed sensor port Light weight billet backplate Oil cooled bearing housing (no water ports) Dual ball bearing CHRA rotating assembly PRODUCT SPECIFICATIONS: Compressor Wheel Inducer: 91mm Compressor Wheel Exducer: 133mm Compressor Wheel Trim: 47 Compressor Housing A/R: 0.96 Turbine Wheel Inducer: 112mm Turbine Wheel Exducer: 102mm Turbine Wheel Trim: 84

TURBINE HOUSING OPTIONS:

T6 Inlet and 5.0" V-Band Outlet.  Available in 1.00, 1.12, 1.24, 1.40, or 1.78 A/R

SFI T6 Inlet and 5.0" V-Band Outlet.  Available in 1.00 A/R or 1.24 A/R

SFI Stainless Steel V-Band Inlet and 5.0" V-Band Outlet.  Available in 1.15 A/R or 1.30 A/R

TiAL Stainless Steel V-Band Inlet & Outlet.  Available in 1.15 A/R or 1.30 A/R
